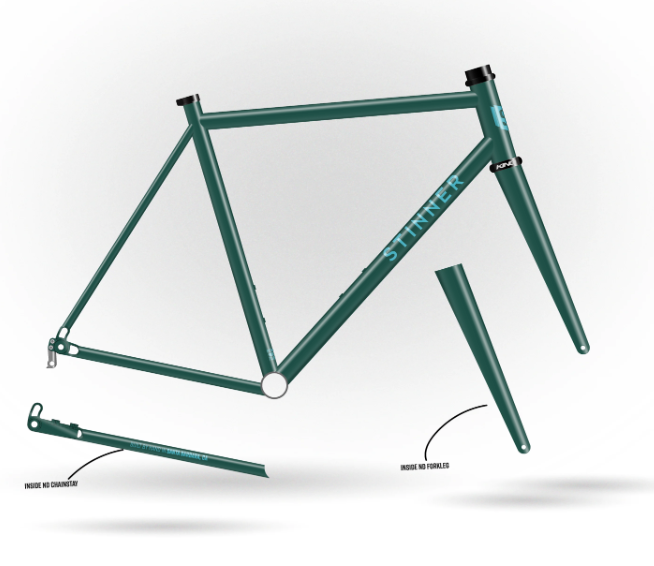

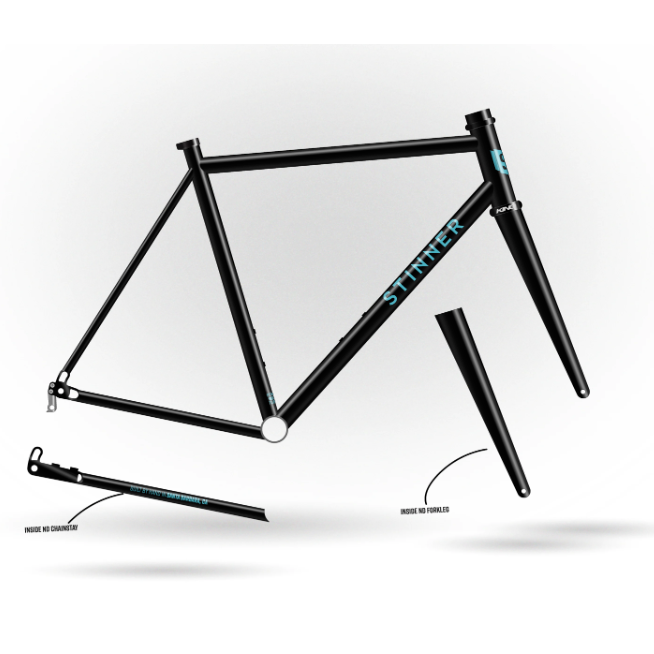

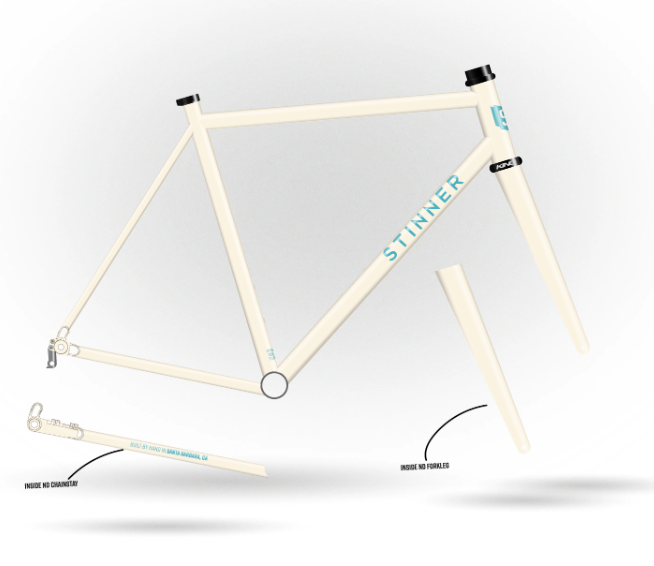

Stinner Gibraltar Steel Frameset
$8,300WIDTH WINS 700 X 32C TIRE
Large volume road tires. Gone are the days of 25c road tires. Larger volume and lower tire pressure rain supreme. The Gibraltar is designed to accomodate up to a 32c road tire.
NO HOSES TO BE SEEN FULL INTERNAL
The Gibraltar features a fully internal cockpit to keep a stunningly clean look. Choose from Chris King, ENVE, or FSA.
DESIGNED BY US TITANIUM DROPOUTS
Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our parts to build a better product.
BIGGER IS BETTER T47 BOTTOM BRACKET
Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.
FRAME SPECS
Drivetrain Compatibility // SRAM eTap / Shimano Di2 12spd / Campagnolo Wireless
Tire Range // 700 x 25 - 32c
MAX Tire Clearance // 700 x 32mm
MAX Chainring Clearance // 2x: 53/39t 1x: 50t
Dropout Spacing // 142 x 12mm
Brake Mount // Flat Mount 140mm
MAX Rotor Size // 160mm
Brake Routing // Fully integrated routing through Bar/Stem/Frame
Seapost Diameter // 27.2mm
Seatpost Clamp Diameter // 31.8mm
Front Derailleur Clamp Diameter // 31.8mm
Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve
Headtube Diameter // 44mm Internal Top and Bottom
Headset Specs // Upper: EC44/28.6 Lower: EC44/40
FORK
MAX Tire Clearance // 700 x 32mm
Dropout Spacing // 100 x 12mm
Brake Mount // Flat Mount 140mm
MAX Rotor Size // 160mm
Brake Routing // Internal
Steerer // 1.5" Tapered
Steerer Length // 300mm
Crown Race // 40mm
Axle to Crown // 370.5mm
Rake // 43mm
