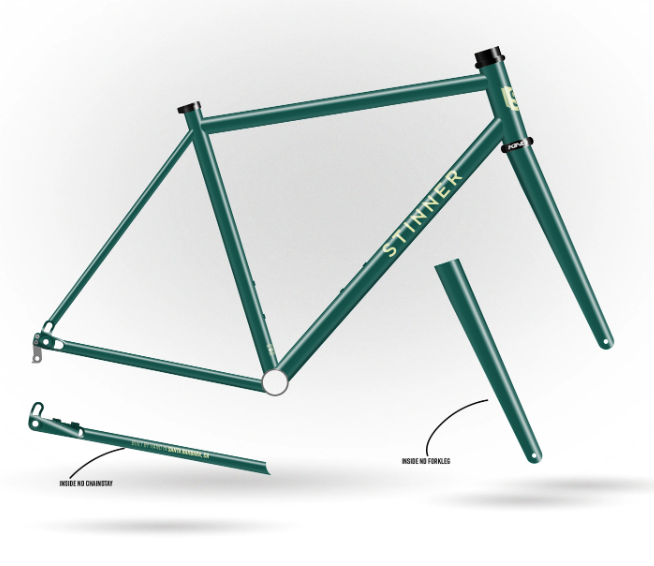

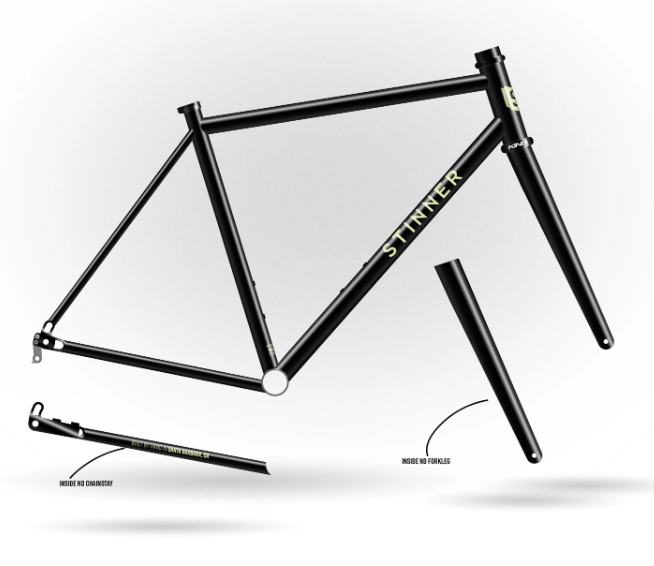

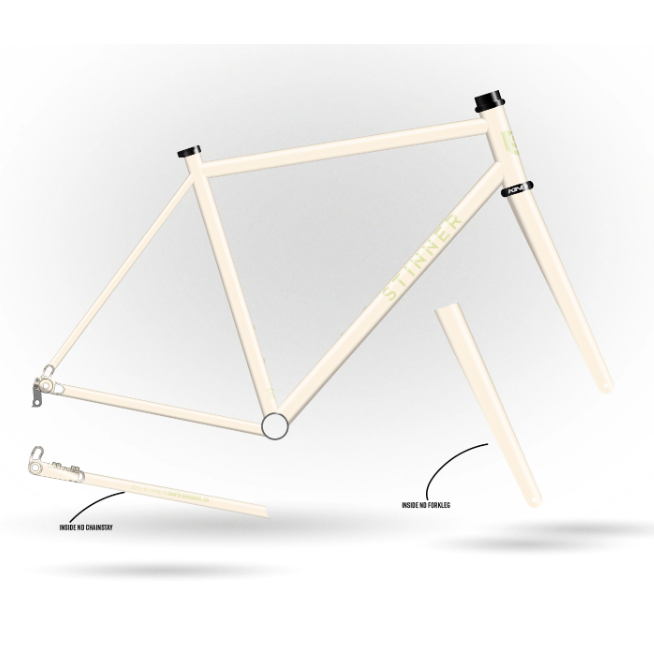

Stinner Carrizo Steel Frameset

DIRT CURIOUS? 700 X 40C TIRE

The Carrizo can accommodate up to a 40mm wide tire so it won't hold you back whenever the pavement ends.

NO HOSES TO BE SEEN FULL INTERNAL

The Carrizo features a fully integrated cockpit to keep it looking tidy. Choose from Chris King, ENVE, or FSA

DESIGNED BY US TITANIUM DROPOUTS

Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our parts to build a better product.

BIGGER IS BETTER T47 BOTTOM BRACKET

Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.

FRAME SPECS

Drivetrain Compatibility // SRAM eTap AXS / Shimano Di2 12spd / Campagnolo Wireless

Tire Range // 700 x 32 - 40c

MAX Tire Clearance // 700 x 40mm

MAX Chainring Clearance // 2x: 50/34t 1x: 42t

Dropout Spacing // 142 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Fully integrated routing through Bar/Stem/Frame

Seapost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm

Front Derailleur Clamp Diameter // 31.8mm

Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: EC44/40 Lower: EC44/40 - Internally Routed

Accessories // Fender Mounts - 3rd bottle mount under downtube

FORK

MAX Tire Clearance // 700 x 40mm

Dropout Spacing // 100 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Full Internal - Hose Exits in Steerer

Steerer // 1.5" Tapered

Steerer Length // 350mm

Crown Race // 40mm

Axle to Crown // 382mm

Rake // 47mm

Accessories // Fender Mounts
