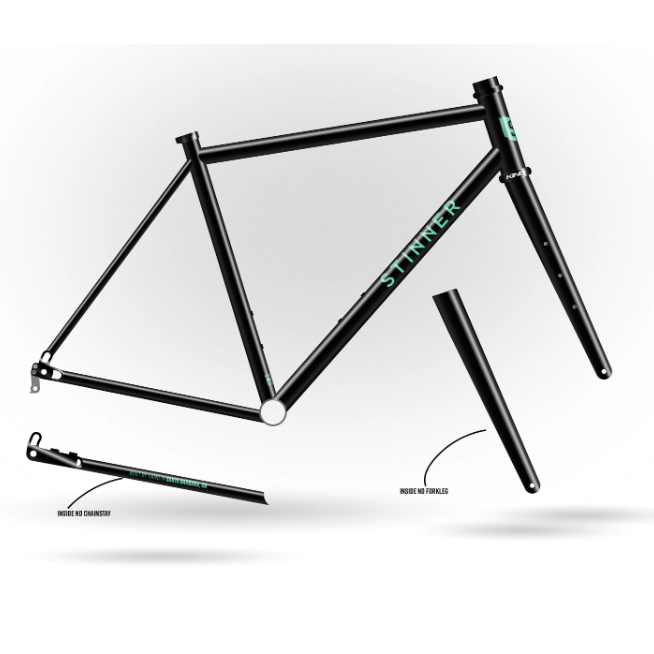

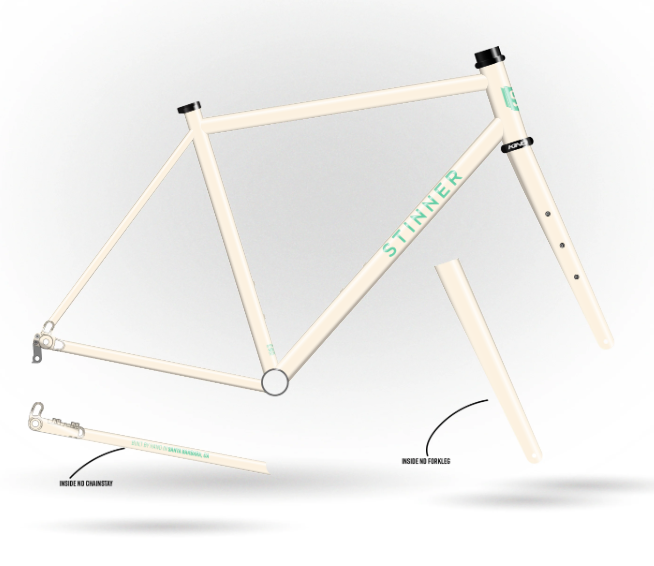

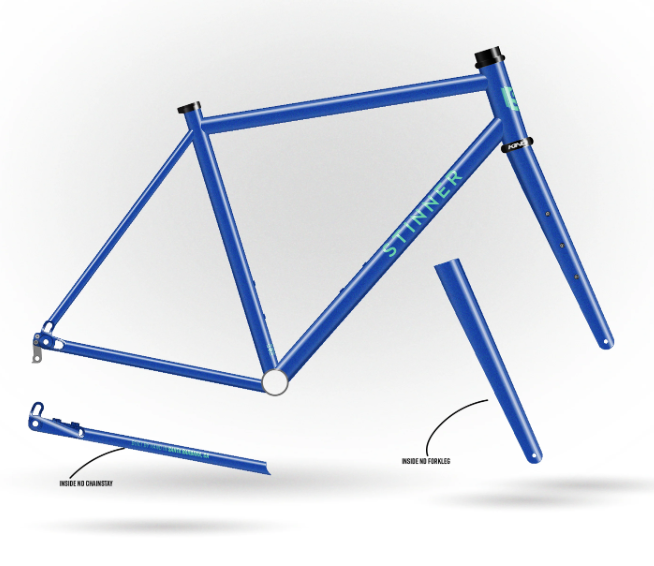

Stinner Refugio Titanium Frameset

SINGLE TRACK READY 700 X 50C TIRE

Plenty of tire clearance to get you where you are going. Most "gravel" terrain these days demands a large volume tire to access remote locations comfortably and confidently.

NO CABLES TO BE SEEN FULL INTERNAL

The Refugio features a fully internal cockpit. No longer does your handlebar bag have to fight your brake hoses. Choose from Chris King, ENVE, or FSA.

DESIGNED BY US TITANIUM UDH DROPOUTS

Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our own parts to build a better product.

BIGGER IS BETTER T47 BOTTOM BRACKET

Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.

FRAME SPECS

Drivetrain Compatibility // SRAM eTap - Transmission Compatible

Hanger // SRAM UDH

Tire Range // 700 x 40 - 50c

MAX Tire Clearance // 700 x 50mm

MAX Chainring Clearance // 1x: 42t

Dropout Spacing // 142 x 12mm

Brake Mount // Flat Mount 160mm

MAX Rotor Size // 160mm

Brake Routing // Fully integrated routing through Bar/Stem/Frame

Seapost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm

Front Derailleur Clamp Diameter // 31.8mm

Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: EC44/40 Lower: EC44/40 - Internally Routed Top Assembly

Accessories // Fender Mounts - 3rd bottle mount under downtube

FORK

MAX Tire Clearance // 700 x 50mm

Dropout Spacing // 100 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Full Internal - Hose Exits in Steerer

Steerer // 1.5" Tapered

Steerer Length // 350mm

Crown Race // 40mm

Axle to Crown // 398mm

Rake // 50mm

Accessories // Fender Mounts, Manything Cage Mounts on each leg, Internal Dynamo Routing, Light Mount
