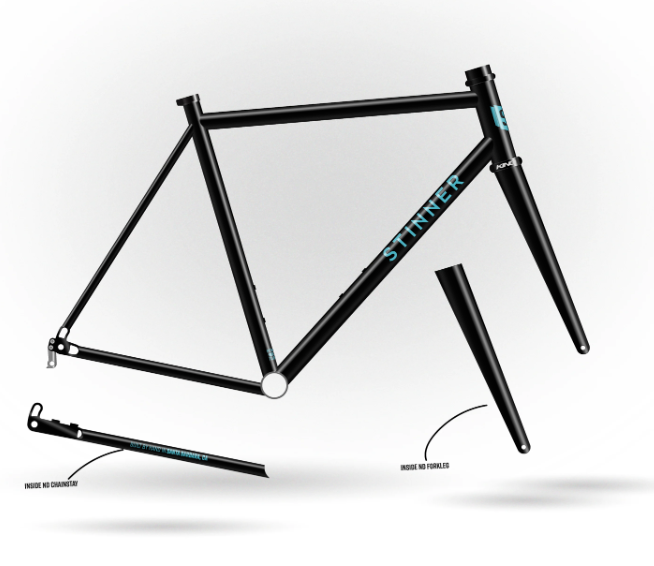

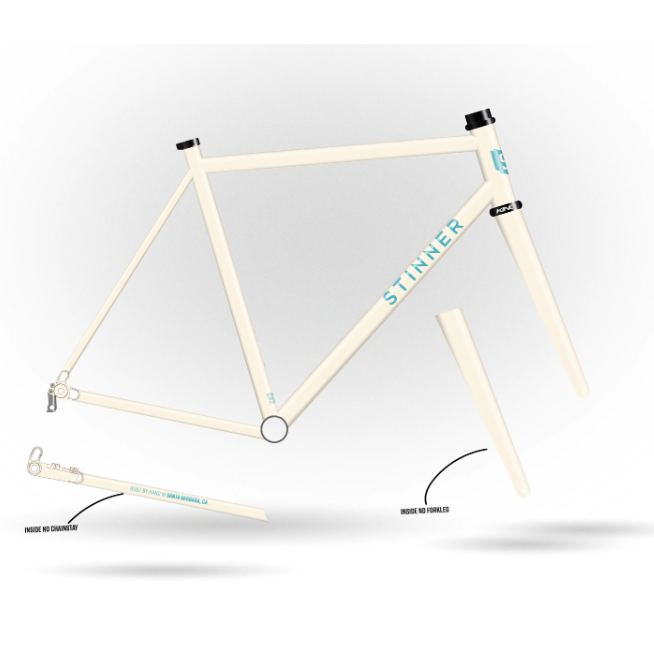

Stinner Gibraltar Titanium Frameset

WIDTH WINS 700 X 32C TIRE

Large volume road tires. Gone are the days of 25c road tires. Larger volume and lower tire pressure rain supreme. The Gibraltar is designed to accomodate up to a 32c road tire.

NO HOSES TO BE SEEN FULL INTERNAL

The Gibraltar features a fully internal cockpit to keep a stunningly clean look. Choose from Chris King, ENVE, or FSA.

DESIGNED BY US TITANIUM DROPOUTS

Designed from the ground up. We were tired of using off the shelf components to build our frames. We invested in designing and sourcing our parts to build a better product.

BIGGER IS BETTER T47 BOTTOM BRACKET

Larger diameter bottom bracket allows us to tailor the ride and to hide unsightly cables.

FRAME SPECS

Drivetrain Compatibility // SRAM eTap / Shimano Di2 12spd / Campagnolo Wireless

Tire Range // 700 x 25 - 32c

MAX Tire Clearance // 700 x 32mm

MAX Chainring Clearance // 2x: 53/39t 1x: 50t

Dropout Spacing // 142 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Fully integrated routing through Bar/Stem/Frame

Seapost Diameter // 27.2mm

Seatpost Clamp Diameter // 31.8mm

Front Derailleur Clamp Diameter // 31.8mm

Bottom Bracket // T47 68mm Wide Shell - BB Requires Spindle Sleeve

Headtube Diameter // 44mm Internal Top and Bottom

Headset Specs // Upper: EC44/28.6 Lower: EC44/40

FORK

MAX Tire Clearance // 700 x 32mm

Dropout Spacing // 100 x 12mm

Brake Mount // Flat Mount 140mm

MAX Rotor Size // 160mm

Brake Routing // Internal

Steerer // 1.5" Tapered

Steerer Length // 300mm

Crown Race // 40mm

Axle to Crown // 370.5mm

Rake // 43mm
